>> Thermal Conductive Grease

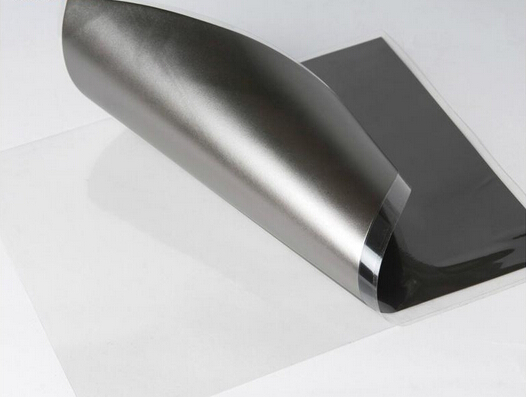

graphite sheet graphite sheet graphite sheet
  • All sheet is made of Natural Graphite
  • Graphite sheet adds cost to each module USD 0.3-USD 0.4
  • 0.05mm has only graphite sheet,, other sheets of different thickness come with or without glue layer
  • Isulation layer is available (exclule 0.05mm) under customer request
ITEM GST-T05 GST-T10 GST-T20 GST-T30 GST-T50
Carbon 99.80% 99.80% 99.80% 99.80% 99.80%
Color Dark Grey Dark Grey Dark Grey Dark Grey Dark Grey
Thickness 0.05mm 0.1mm 0.2mm 0.3mm 0.5mm
Thickness Tolerance ±0.005mm ±0.005mm ±0.008mm ±0.015mm ±0.015mm
Material Density 2.1g/cm³ 2.1g/cm³ 1.6~2.0g/cm³ 1.6~2.0g/cm³ 1.6~2.0g/cm³
Hardness 85 shore A 85 shore A 85 shore A 85 shore A 85 shore A
Tensile Strength 650psi 650psi 650psi 650psi 650psi
UL Flammability Rate 94-VO 94-VO 94-VO 94-VO 94-VO
Temperature Range -40°C-400°C -40°C-400°C -40°C-400°C -40°C-400°C -40°C-400°C
Thermal conductivity X-Y Axis 700~900w/m.k 500~600w/m.k 400~500w/m.k 300~400w/m.k 200~300w/m.k
Thermal conductivity Z Axis 10~15w/m.k 10~15w/m.k 10~15w/m.k 10~15w/m.k 10~15w/m.k
Thermal resistance °C 450 450 450 450 450
Electrical Conductivity (s/cm) 10000 10000 10000 10000 10000
